Sharing TabUpdated 2 hours ago

Summary

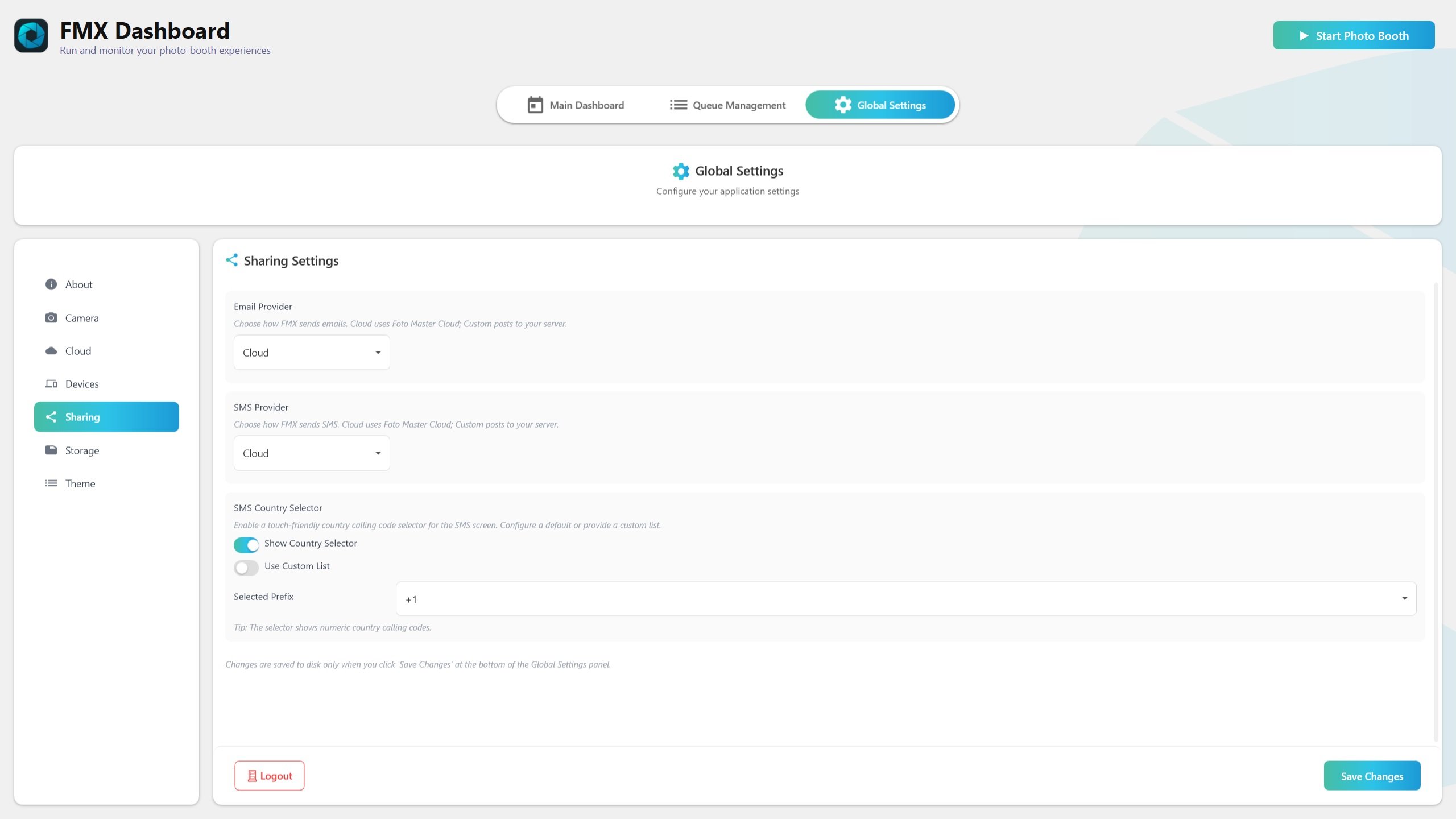

• The Sharing tab controls how FMX sends content to guests by Email and SMS.

• You can use Foto Master Cloud (recommended) or your own server (“Custom”).

• Includes an SMS Country Selector for accurate phone number entry.

• Changes apply immediately for testing; click Save Changes to keep them for next time. The Save button validates your entries.

Providers and modes

• Email Provider

  • Cloud: FMX uses Foto Master Cloud to deliver emails.

  • Custom: FMX sends a POST request to your server.

    • Custom Server URL: your HTTPS endpoint.

    • X-API-Key: secret key sent in the X-API-Key header.

• SMS Provider

  • Cloud: FMX uses Foto Master Cloud to deliver SMS/MMS.

  • Custom: FMX sends a POST request to your server.

    • Custom Server URL: your HTTPS endpoint.

    • X-API-Key: secret key sent in the X-API-Key header.

• Validation on Save

  • In Custom mode: URL must be valid, X-API-Key must not be empty. Invalid entries block Save with a clear error.

What FMX sends in Custom mode

• Transport

  • Method: POST

  • Headers: Content-Type: application/json, X-API-Key: <your key>

  • URL: exactly what you set in Custom Server URL

• Email request body (JSON)

  • recipients: list of emails

  • media: array of items, each with url or base64 + filename + mimeType

  • metadata: includes app/version/timestamp/machine

• SMS request body (JSON)

  • recipients: list of E.164 numbers (e.g., +15551234567)

  • message: optional text

  • media: same rules as email

• Media behavior

  • Prefers url if Cloud sync is available; falls back to base64.

  • Server should accept both.

• Expected responses

  • Success: HTTP 2xx (optionally per-recipient results).

  • Error: HTTP 4xx/5xx with details.

SMS Country Selector

• Enable Country Selector: toggles selector on SMS screen.

• Default Prefix: the pre-selected country code (e.g., +1).

• Custom List (optional): comma-separated codes (e.g., +1,+44,+972).

• Validation rules:

  • If Country Selector ON + Custom List ON → list must have at least one valid code.

  • Default Prefix must exist in the active list.

• Tips: keep the list short, always set a sensible Default Prefix.

Notes on assets and templates

• Current builds disable Email/SMS asset sections in Theme. If enabled in future, customization will be available there. For now, provider choice is managed in Sharing tab.

Recommended workflow

1. Choose provider: start with Cloud; switch to Custom when endpoint + key are ready.

2. For Custom: set Server URL + X-API-Key.

3. (Optional) Configure SMS Country Selector: Default Prefix, and optionally a custom list.

4. Click Save Changes.

5. Run a test:

   • Email → send to yourself.

   • SMS → send to a test phone.

6. If using Cloud QR sharing, scan QR and confirm landing page updates when upload finishes.

Troubleshooting

• Save blocked: invalid URL → enter full https:// address.

• Save blocked: missing key → enter a non-empty API key.

• Country selector error → fix custom list or Default Prefix.

• Email/SMS not delivered (Custom) → check server response:

  • 401/403 = key mismatch

  • 400 = schema mismatch

  • 413 = size limit exceeded

• Provider rejects MMS/attachments → use urls or smaller/transcoded files.

• Large base64 payloads → enable Cloud sync or increase server limits.

Privacy and reliability (Custom)

• Always use HTTPS.

• Keep API key secret; rotate periodically.

• Validate recipients server-side.

• Log requestId/sessionId for traceability.

• Rate-limit if needed.

Save reminder

• Settings are live for testing, but only persist after clicking Save Changes in Global Settings.

Quick checklist

• Pick Provider → Enter URL + API Key (Custom) → Configure SMS Selector → Save Changes → Test Email/SMS

Do/Don’t summary

• Do start with Cloud for quickest setup.

• Do use HTTPS + secure API key in Custom.

• Do keep SMS list short and Default Prefix correct.

• Don’t assume Custom works without HTTP 2xx response.

• Don’t forget to Save Changes.

References

• Sharing_Custom_Email.md [will be sent upon request]

• Sharing_Custom_SMS.md [will be sent upon request]

• Cloud & QR links: see Cloud tab guidance
