Storage TabUpdated 2 hours ago

Summary

• The Storage tab controls where FMX saves your event media and whether the app auto-deletes older content and writes system logs.

• Changes apply immediately for testing; click Save Changes to keep them for next time.

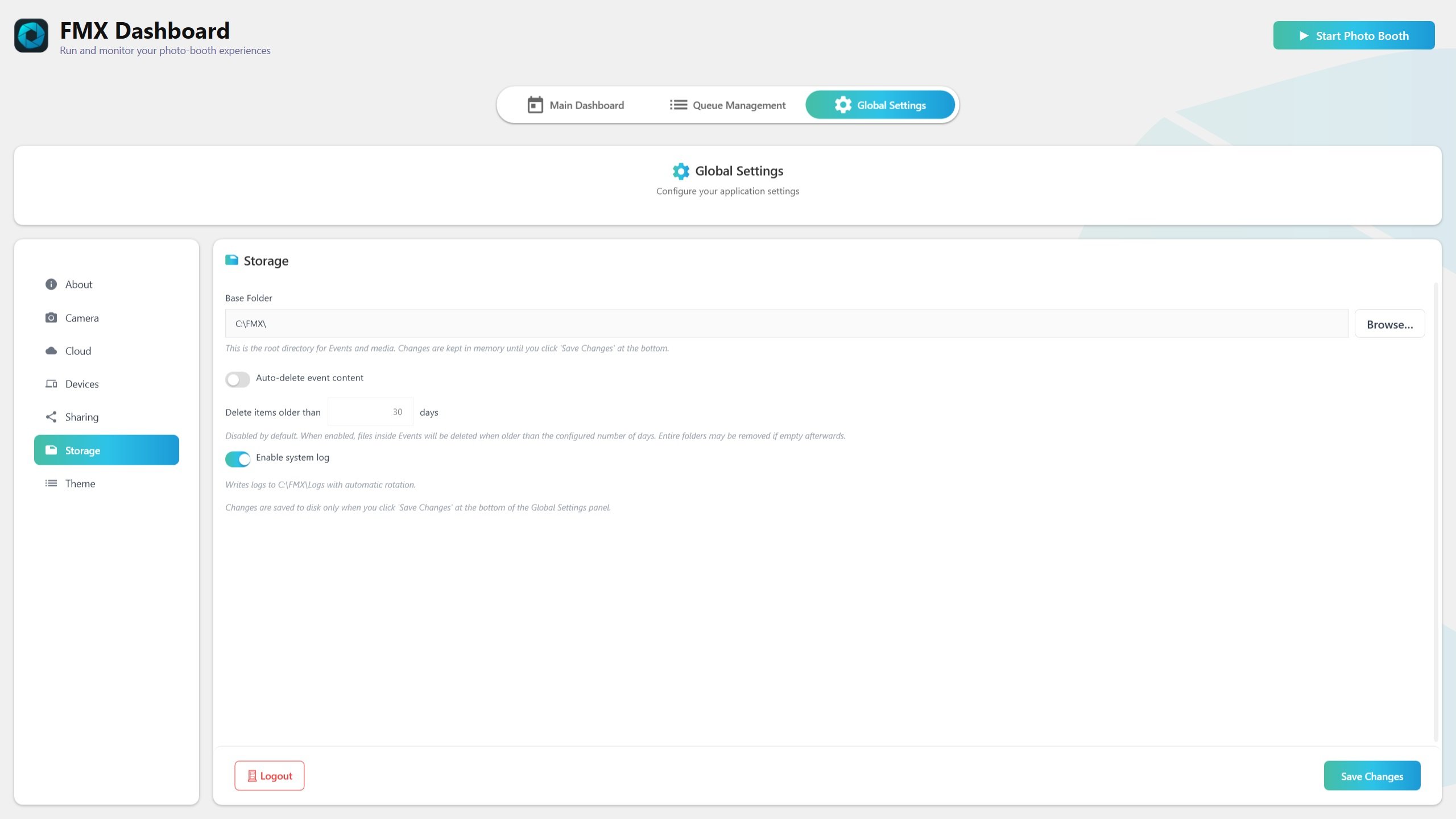

Controls

• Base Folder

  • Displays the root folder FMX uses for events and media (photos, videos, GIFs, scans).

  • Change Folder… opens a picker to select a new base folder.

• Auto-Delete Old Content

  • ON → FMX cleans up older content per the “Delete after N days” setting.

  • OFF → no auto-deletion.

• Delete after N days

  • Number of days to retain content before cleanup.

  • Only digits allowed; minimum = 1.

  • Empty/invalid resets to default (30) when focus leaves the field.

• System Log

  • ON → FMX writes detailed logs to C:\FMX\Logs with automatic rotation.

  • OFF → disables file logging.

  • Takes effect immediately; Save persists the choice.

How to change the Base Folder

1. Click Change Folder…

2. Select the target directory and confirm.

3. Field updates immediately; click Save Changes to persist.

Auto-delete (behavior)

• Enable Auto-Delete and set retention days (≥1).

• Invalid input resets to 30 days.

• Applies only to FMX-managed media under Base Folder.

• Keep OFF during critical events if you’re unsure what to retain.

System Log

• Enabled → logs saved to C:\FMX\Logs with rotation.

• Toggle affects runtime instantly.

• Persisted only after Save.

Save behavior

• All edits apply immediately but persist only after clicking Save Changes.

• Covers Base Folder, Auto-Delete, retention days, and System Log.

Recommended workflow

1. Choose a fast, reliable local Base Folder (avoid unstable network/USB paths).

2. Enable Auto-Delete with safe retention (e.g., 30 days) if cleanup is desired.

3. Enable System Log if you need saved diagnostics.

4. Click Save Changes.

Troubleshooting

• Folder picker blocked → retry; check Windows prompts or policies; type path manually if needed.

• Auto-delete not running → runs on schedule, not instantly.

• Letters in Days field → blocked by design (digits only).

• No logs in C:\FMX\Logs → ensure System Log is ON, folder may appear after first log, check permissions.

Quick checklist

• Set Base Folder → Decide Auto-Delete + Days → Toggle System Log → Save Changes

Do/Don’t summary

• Do use a reliable Base Folder with enough free space.

• Do enable Auto-Delete with safe retention for long-term setups.

• Do enable System Log for diagnostics when needed but don't forget to disable it right after.

• Don’t forget to click Save Changes to persist settings.
